Bronze Bushings
Bronze bushings from CCTY have excellent fatigue resistance and bearing capacity. The MCA line performs well in heavy load, low speed applications similar to those found in material handling and lifting equipment, agricultural machines and construction equipment.
The MCA bronze bushings are available as cylindrical, flanged and thrust.
Bronze Bushing Technical Parameters
| Technical parameter | Unit | Value |
| Maximum load (static) | Mpa | 120 |
| Temperature range | °C | -40 / +250 |
| Maximum sliding velocity | m/s | 2.5 |
| Size range (inner diameter) | mm | 10 – 300 |

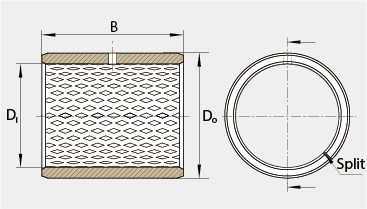

Bronze Bushing Sizing
| units: mm | |||
| Nominal Diameter | Width | ||
| Part Number | ID | OD | Nominal |
| MCA 1010 | 10 | 12 | 10 |
| MCA 1015 | 15 | ||
| MCA 1210 | 12 | 14 | 10 |
| MCA 1215 | 15 | ||
| MCA 1220 | 20 | ||
| MCA 1410 | 14 | 16 | 10 |
| MCA 1415 | 15 | ||
| MCA 1420 | 20 | ||
| MCA 1425 | 25 | ||
| MCA 1510 | 15 | 17 | 10 |
| MCA 1515 | 15 | ||
| MCA 1520 | 20 | ||
| MCA 1525 | 25 | ||
| MCA 1610 | 16 | 18 | 10 |
| MCA 1615 | 15 | ||
| MCA 1620 | 20 | ||
| MCA 1625 | 25 | ||
| MCA 1810 | 18 | 21 | 10 |
| MCA 1815 | 15 | ||
| MCA 1820 | 20 | ||
| MCA 1825 | 25 | ||
| MCA 2010 | 20 | 23 | 10 |
| MCA 2015 | 15 | ||
| MCA 2020 | 20 | ||
| MCA 2025 | 25 | ||
| MCA 2030 | 30 | ||
| MCA 2215 | 22 | 25 | 15 |
| MCA 2220 | 20 | ||
| MCA 2225 | 25 | ||
| MCA 2230 | 30 | ||
| MCA 2240 | 40 | ||
| MCA 2430 | 24 | 27 | 30 |
| MCA 2515 | 25 | 28 | 15 |
| MCA 2520 | 20 | ||
| MCA 2525 | 25 | ||
| MCA 2530 | 30 | ||
| MCA 2815 | 28 | 31 | 15 |
| MCA 2820 | 20 | ||
| MCA 2825 | 25 | ||
| MCA 2830 | 30 | ||
| MCA 3015 | 30 | 34 | 15 |
| MCA 3020 | 20 | ||
| MCA 3025 | 25 | ||
| MCA 3030 | 30 | ||
| MCA 3040 | 40 | ||
| MCA 3215 | 32 | 36 | 15 |
| MCA 3220 | 20 | ||
| MCA 3225 | 25 | ||
| MCA 3230 | 30 | ||
| MCA 3240 | 40 | ||
| MCA 3515 | 35 | 39 | 15 |
| MCA 3520 | 20 | ||
| MCA 3525 | 25 | ||
| MCA 3530 | 30 | ||
| MCA 3535 | 35 | ||
| MCA 3540 | 40 | ||
| MCA 3550 | 50 | ||
| MCA 4020 | 40 | 44 | 20 |
| MCA 4025 | 25 | ||
| MCA 4030 | 30 | ||
| MCA 4040 | 40 | ||
| MCA 4050 | 50 | ||
| MCA 4060 | 60 | ||
| MCA 4520 | 45 | 50 | 20 |
| MCA 4525 | 25 | ||
| MCA 4530 | 30 | ||
| MCA 4540 | 40 | ||
| MCA 4550 | 50 | ||
| MCA 4560 | 60 | ||
| MCA 5025 | 50 | 55 | 25 |
| MCA 5030 | 30 | ||
| MCA 5040 | 40 | ||
| MCA 5050 | 50 | ||
| MCA 5060 | 60 | ||
| MCA 5520 | 55 | 60 | 20 |
| MCA 5525 | 25 | ||
| MCA 5530 | 30 | ||
| MCA 5540 | 40 | ||
| MCA 5550 | 50 | ||
| MCA 5560 | 60 | ||
| MCA 6025 | 60 | 65 | 25 |
| MCA 6030 | 30 | ||
| MCA 6035 | 35 | ||
| MCA 6040 | 40 | ||
| MCA 6050 | 50 | ||
| MCA 6060 | 60 | ||
| MCA 6080 | 80 | ||
| MCA 6090 | 90 | ||
| MCA 6530 | 65 | 70 | 30 |
| MCA 6540 | 40 | ||
| MCA 6550 | 50 | ||
| MCA 6560 | 60 | ||
| MCA 6580 | 80 | ||
| MCA 7040 | 70 | 75 | 40 |
| MCA 7050 | 50 | ||
| MCA 7060 | 60 | ||
| MCA 7070 | 70 | ||
| MCA 7080 | 80 | ||
| MCA 7090 | 90 | ||
| MCA 7530 | 75 | 80 | 30 |
| MCA 7540 | 40 | ||
| MCA 7560 | 60 | ||
| MCA 7580 | 80 | ||
| MCA 8030 | 80 | 85 | 30 |
| MCA 8040 | 40 | ||
| MCA 8060 | 60 | ||
| MCA 8080 | 80 | ||
| MCA 8530 | 85 | 90 | 30 |
| MCA 8540 | 40 | ||
| MCA 8560 | 60 | ||
| MCA 8580 | 80 | ||
| MCA 9040 | 90 | 95 | 40 |
| MCA 9060 | 60 | ||
| MCA 9080 | 80 | ||
| MCA 9090 | 90 | ||
| MCA 10050 | 100 | 105 | 50 |
| MCA 10060 | 60 | ||
| MCA 10095 | 95 | ||
| MCA 10560 | 105 | 110 | 60 |
| MCA 105100 | 100 | ||
| MCA 11060 | 110 | 115 | 60 |
| MCA 110100 | 100 | ||
| MCA 11560 | 115 | 120 | 60 |
| MCA 115100 | 100 | ||
| MCA 12060 | 120 | 125 | 60 |
| MCA 120100 | 100 | ||
| MCA 12560 | 125 | 130 | 60 |
| MCA 125100 | 100 | ||
| MCA 13060 | 130 | 135 | 60 |
| MCA 130100 | 100 | ||
| MCA 13560 | 135 | 140 | 60 |
| MCA 135100 | 100 | ||
| MCA 14060 | 140 | 145 | 60 |
| MCA 140100 | 100 | ||
| MCA 14560 | 145 | 150 | 60 |
| MCA 145100 | 100 | ||
| MCA 15060 | 150 | 155 | 60 |
| MCA 150100 | 100 | ||
| MCA 15560 | 155 | 160 | 60 |
| MCA 155100 | 100 | ||
| MCA 16060 | 160 | 165 | 60 |
| MCA 160100 | 100 | ||
| MCA 16560 | 165 | 170 | 60 |
| MCA 165100 | 100 | ||
| MCA 17060 | 170 | 175 | 60 |
| MCA 170100 | 100 | ||
| MCA 17560 | 175 | 180 | 60 |
| MCA 175100 | 100 | ||
| MCA 18060 | 180 | 185 | 60 |
| MCA 180100 | 100 | ||
| MCA 18560 | 185 | 190 | 60 |
| MCA 185100 | 100 | ||
| MCA 19060 | 190 | 195 | 60 |
| MCA 190100 | 100 | ||
| MCA 19560 | 195 | 200 | 60 |
| MCA 195100 | 100 | ||
| MCA 20060 | 200 | 205 | 60 |
| MCA 200100 | 100 | ||
| MCA 21560 | 215 | 220 | 60 |
| MCA 215100 | 100 | ||
| MCA 22560 | 225 | 230 | 60 |
| MCA 225100 | 100 | ||
| MCA 23560 | 235 | 240 | 60 |
| MCA 235100 | 100 | ||
| MCA 24560 | 245 | 250 | 60 |
| MCA 245100 | 100 | ||
| MCA 27560 | 275 | 280 | 60 |
| MCA 275100 | 100 | ||
| MCA 28560 | 285 | 290 | 60 |
| MCA 285100 | 100 | ||
| MCA 30060 | 300 | 305 | 60 |
| MCA 300100 | 100 | ||
