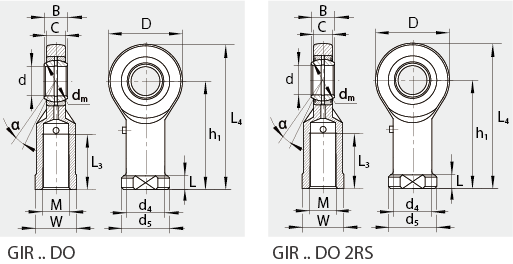

GIR-DO Rod Ends

Product Number		Dimensions												Thread	Basic load ratings		Angle	Mass
Open	Sealed	d	B	C	dm	D	h1	L4	L3	ds	d4	L	W	M-6H	dyn. Cr kN	stat. COr kN	α[°]	≈kg
GIR 6 DO1		6	6	4.4	10	21	30	40.5	11	13	10	5	11	M6	3.4	10.2	13	0.021
GIR 8 DO1		8	8	6	13	24	36	48	15	16	12.5	5	14	M8	5.5	16	15	0.039
GIR 10 DO1		10	9	7	16	29	43	57.5	20	19	15	6.5	17	M10	8.15	22	12	0.061
GIR 12 DO1		12	10	8	18	34	50	67	23	22	17.5	6.5	19	M12	10.8	30.4	11	0.096
GIR 15 DO		15	12	10	22	40	61	81	30	26	21	8	22	M14	17	44.8	8	0.18
GIR 17 DO		17	14	11	25	46	67	90	34	30	24	10	27	M16	21.2	56.5	10	0.22
GIR 20 DO	GIR 20 DO 2RS	20	16	13	29	53	77	103.5	40	35	27.5	10	32	M20x1.5	30	75.6	9	0.35
GIR 25 DO	GIR 25 DO 2RS	25	20	17	35	64	94	126	48	42	33.5	12	36	M24 x2	48	88.2	7	0.64
GIR 30 DO	GIR 30 DO 2RS	30	22	19	40	73	110	146.5	56	50	40	15	41	M30x2	62	119	6	0.93
GIR 35 DO	GIR 35 DO 2RS	35	25	21	47	82	125	166	60	58	47	15	50	M36x3	80	159	6	1.3
GIR 40 DO	GIR 40 DO 2RS	40	28	23	53	92	142	188	65	65	52	18	55	M39x3	100	194	7	2.0
GIR 45 DO	GIR 45 DO 2RS	45	32	27	60	102	145	196	65	70	58	20	60	M42x3	127	259	7	2.5

¹ Grease fittings not available on these sizes.
