| Technical Parameter | Unit | Value |
| Sliding Contact Surface | – | Steel / Steel |
| Working Temperature | °C | -50 / +150 |
| °C | -30 / +130 (with seals) |
| Type of Lubrication | – | Grease / Oil |
| Seals | – | Available (2RS) |
| Size Range (inner dia.) | mm | 6 – 260 |

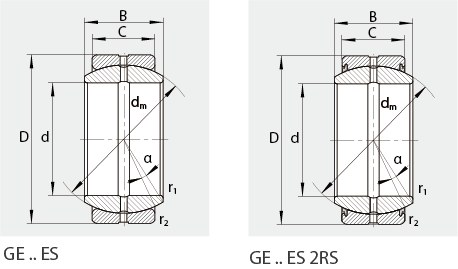

| | Dimensions | Basic load ratings | Angle | Mass |
| Product Number | d | D | B | C | dm | r1 | r 2 | dyn. | stat. | α[°] | ≈kg |
| | | | | | | | | Cr | C0r | | |
| | | | | | | min. | min. | kN | kN | | |
| GE 6 E 1) | | 6 | 14 | 6 | 4 | 10 | 0.3 | 0.3 | 3.4 | 17 | 13 | 0.005 |
| GE 8 E 1) | | 8 | 16 | 8 | 5 | 13 | 0.3 | 0.3 | 5.5 | 27.5 | 15 | 0.007 |
| GE 10 E 1) | | 10 | 19 | 9 | 6 | 16 | 0.3 | 0.3 | 8.2 | 40.5 | 12 | 0.012 |
| GE 12 E 1) | | 12 | 22 | 10 | 7 | 18 | 0.3 | 0.3 | 10.8 | 54 | 11 | 0.017 |
| GE 15 ES | GE 15 ES 2RS | 15 | 26 | 12 | 9 | 22 | 0.3 | 0.3 | 17 | 85 | 8 | 0.027 |
| GE 17 ES | GE 17 ES 2RS | 17 | 30 | 14 | 10 | 25 | 0.3 | 0.3 | 21.2 | 106 | 10 | 0.041 |
| GE 20 ES | GE 20 ES 2RS | 20 | 35 | 16 | 12 | 29 | 0.3 | 0.3 | 30 | 146 | 9 | 0.065 |
| GE 25 ES | GE 25 ES 2RS | 25 | 42 | 20 | 16 | 35 | 0.6 | 0.6 | 48 | 240 | 7 | 0.12 |
| GE 30 ES | GE 30 ES 2RS | 30 | 47 | 22 | 18 | 40 | 0.6 | 0.6 | 62 | 310 | 6 | 0.15 |
| GE 35 ES | GE 35 ES 2RS | 35 | 55 | 25 | 20 | 47 | 0.6 | 1 | 80 | 400 | 6 | 0.23 |
| GE 40 ES | GE 40 ES 2RS | 40 | 62 | 28 | 22 | 53 | 0.6 | 1 | 100 | 500 | 7 | 0.32 |
| GE 45 ES | GE 45 ES 2RS | 45 | 68 | 32 | 25 | 60 | 0.6 | 1 | 127 | 640 | 7 | 0.42 |
| GE 50 ES | GE 50 ES 2RS | 50 | 75 | 35 | 28 | 66 | 0.6 | 1 | 156 | 780 | 6 | 0.56 |
| GE 60 ES | GE 60 ES 2RS | 60 | 90 | 44 | 36 | 80 | 1 | 1 | 245 | 1220 | 6 | 1.03 |
| GE 70 ES | GE 70 ES 2RS | 70 | 105 | 49 | 40 | 92 | 1 | 1 | 315 | 1560 | 6 | 1.56 |
| GE 80 ES | GE 80 ES 2RS | 80 | 120 | 55 | 45 | 105 | 1 | 1 | 400 | 2000 | 6 | 2.29 |
| GE 90 ES | GE 90 ES 2RS | 90 | 130 | 60 | 50 | 115 | 1 | 1 | 490 | 2450 | 5 | 2.76 |
| GE 100 ES | GE 100 ES 2RS | 100 | 150 | 70 | 55 | 130 | 1 | 1 | 610 | 3050 | 7 | 4.42 |
| GE 110 ES | GE 110 ES 2RS | 110 | 160 | 70 | 55 | 140 | 1 | 1 | 655 | 3250 | 6 | 4.8 |
| GE 120 ES | GE 120 ES 2RS | 120 | 180 | 85 | 70 | 160 | 1 | 1 | 950 | 4750 | 6 | 8.06 |
| GE 140 ES | GE 140 ES 2RS | 140 | 210 | 90 | 70 | 180 | 1 | 1 | 1080 | 5400 | 7 | 11.2 |
| GE 160 ES | GE 160 ES 2RS | 160 | 230 | 105 | 80 | 200 | 1 | 1 | 1370 | 6800 | 8 | 14.2 |
| GE 180 ES | GE 180 ES 2RS | 180 | 260 | 105 | 80 | 225 | 1.1 | 1.1 | 1530 | 7650 | 6 | 18.6 |
| GE 200 ES | GE 200 ES 2RS | 200 | 290 | 130 | 100 | 250 | 1.1 | 1.1 | 2120 | 10600 | 7 | 28.5 |
| GE 220 ES | GE 220 ES 2RS | 220 | 320 | 135 | 100 | 275 | 1.1 | 1.1 | 2320 | 11600 | 8 | 35.5 |
(1) Grease fittings not available on these sizes.
