| Technical Parameter | Unit | Value |
|---|---|---|
| Sliding Contact Surface | – | Steel / Nylon |
| Working Temperature | °C | -30 / +120 (sealed) |
| Type of Lubrication | – | Self-lubricating |
| Seal Configuration | – | With boot |
| Range (thread size) | mm | M8 - M16 |

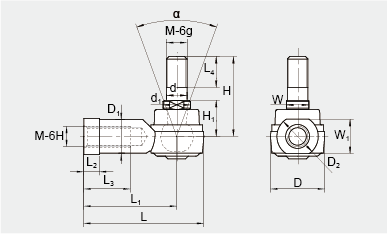

| Product Number | Dimensions | Thread | Ultimate Stat. | Angle | Mass | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | d1 | L | L1 | L2 | L3 | L4 | H | h1 | D | D1 | d2 | W1 | W | M | Pull Out kN | Shear kN | α[°] | ≈kg | |
| SQF 8 N RS | 8 | 10.6 | 46.5 | 36 | 6 | 18 | 12 | 31 | 14 | 21 | 13 | 16 | 14 | 9 | M8 | 3.5 | 6 | 40 | 0.064 |
| SQF 10 N RS | 10 | 13 | 56.5 | 43 | 7 | 22 | 21 | 43 | 17 | 27 | 15 | 19 | 17 | 11 | M10 | 18.3 | 11.3 | 40 | 0.108 |
| SQF 12 N RS | 12 | 16 | 65.5 | 50 | 5.5 | 26 | 17 | 41.7 | 18.7 | 31 | 20 | 26 | 22 | 14 | M12x1.25 | 25 | 16 | 40 | 0.21 |
| SQF 14 N RS | 14 | 18 | 74 | 57 | 10 | 30 | 22 | 56 | 21.5 | 34 | 20 | 25 | 22 | 17 | M14x1.5 | 36.4 | 19.8 | 40 | 0.27 |
| SQF 16 N RS | 16 | 18.7 | 83 | 64 | 11 | 34 | 29 | 66 | 23.5 | 38 | 22 | 27 | 24 | 17 | M16 | 36.4 | 26.9 | 30 | 0.366 |
