Maintenance-Free Thrust Washers I CCTY

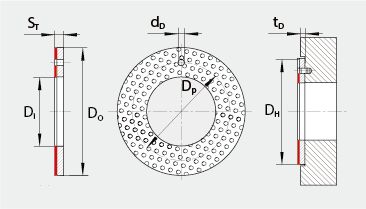

Product	D_i	D_o	S_T	Hole Diameter d_D		Hole PCD D_p		Housing Diameter D_H		Recess depth t_D
Number	+0.25	-0.25	-0.05	max.	min.	max.	min.	max.	min.	max.	min.
TSA 10 SF	10	20	1.5	—	—	—	—	20.12	20	1.2	0.95
TSA 12 SF	12	24	1.5	1.875	1.625	18.12	17.88	24.12	24	1.2	0.95
TSA 14 SF	14	26	1.5	2.375	2.125	20.12	19.88	26.12	26	1.2	0.95
TSA 16 SF	16	30	1.5	2.375	2.125	22.12	21.88	30.12	30	1.2	0.95
TSA 18 SF	18	32	1.5	2.375	2.125	25.12	24.88	32.12	32	1.2	0.95
TSA 20 SF	20	36	1.5	3.375	3.125	28.12	27.88	36.12	36	1.2	0.95
TSA 22 SF	22	38	1.5	3.375	3.125	30.12	29.88	38.12	38	1.2	0.95
TSA 24 SF	24	42	1.5	3.375	3.125	33.12	32.88	42.12	42	1.2	0.95
TSA 26 SF	26	44	1.5	3.375	3.125	35.12	34.88	44.12	44	1.2	0.95
TSA 28 SF	28	48	1.5	4.375	4.125	38.12	37.88	48.12	48	1.2	0.95
TSA 32 SF	32	54	1.5	4.375	4.125	43.12	42.88	54.12	54	1.2	0.95
TSA 38 SF	38	62	1.5	4.375	4.125	50.12	49.88	62.12	62	1.2	0.95
TSA 42 SF	42	66	1.5	4.375	4.125	54.12	53.88	66.12	66	1.2	0.95
TSA 48 SF	48	74	2	4.375	4.125	61.12	60.88	74.12	74	1.7	1.45
TSA 52 SF	52	78	2	4.375	4.125	65.12	64.88	78.12	78	1.7	1.45
TSA 62 SF	62	90	2	4.375	4.125	76.12	75.88	90.12	90	1.7	1.45
